74 M Solar Tracking System Back Tracking Axis Solar Tracker With Worm Gear

Brand Name : Good Future Solar

Model Number : MG/ZG/YG/JG

Certification : CE/ISO/BV/SGS

Place of Origin : China

MOQ : Negotiate

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000MW per Month

Delivery Time : 30 Working Days after design confirm

Packaging Details : Neutral packing

Product : 74 M Solar Tracking System Back Tracking Axis Solar Tracker With Worm Gear

Driving System : Slew drive

Tracking Range : ±60 degree

String-Powered : Yes

Night Position : Yes

Tracking Accuracy : ≤ 1°

Operation Temperature : -40℃ - 70℃

Module Supported : All commercially available modules

Contact Now

74 M Solar Tracking System Back Tracking Axis Solar Tracker With Worm Gear

Working principle:

Sigle axis tracking system is the latest generation ofproducts launched by Good Future Solar, canbe use as horizontal single-axis. Group moving of rotating stands through linkage ,it can be applied freely in the rugged slope ,as well as in many complex installation conditions such as hills ,river beaches ,deserts and Gobi Deserts .Power generatioin of single-axis tracking system is increased by 20%-25% compared with fixed support system.


Functions:

1) Power generation efficiency increased by 35%~40%.
2) Simple structure ,easy in installation and debugger application.
3) Adopting advanced good quality components in inclination,electric parts and actuator parts.
4) The tracker could adjusts solar panels into horizontal when meeting strong wind.
5) Adapt to outdoor environment,working temperature -40~80C°.
6) Running in a high automation and intelligence,no pollution.
7) Hot-dipped zinc galvanization will extend the work life of the brackets

Technical Parameters of single axis solar tracker

Automatic Sun Tracking Solar Panel With Slewing Drive Solar Tracker
Tracking Range 士 60°
Driving System Slew drive, 28VDC motor
Modules per Tracker Max.90 modules per tracker
System Voltage 1000 V or 1500 V
Ground Coverage Ratio ≥ 25%
Power Consumption 0.2-0.5kWh/day
Power Supply Mode Powered by PV strings, back-up lithium battery
Standard Design Wind Speed 18m/s
Module Supported All commercially available modules
Operation Temperature -40℃ - 70℃
Control Algorithm Astronomical algorithms + Tilt sensor close loop
Tracking Accuracy ≤ 1°
String-Powered Yes
Backtracking Yes
Communication Options LoRa wireless /RS 485 cable
Night Position Yes

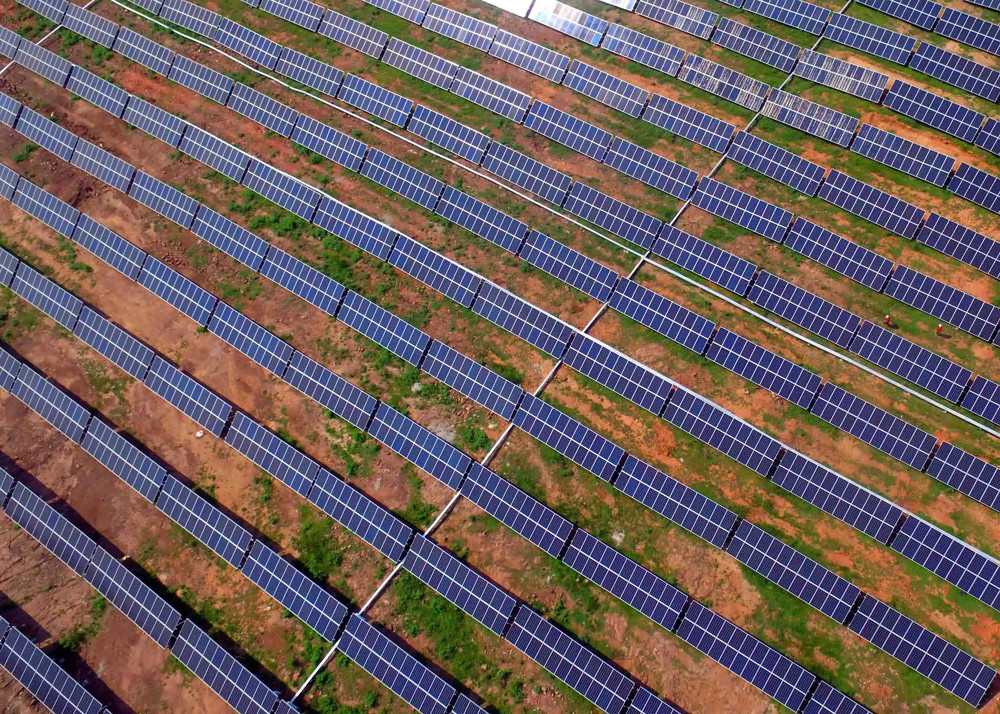

74 M Solar Tracking System Back Tracking Axis Solar Tracker With Worm Gear74 M Solar Tracking System Back Tracking Axis Solar Tracker With Worm Gear74 M Solar Tracking System Back Tracking Axis Solar Tracker With Worm Gear74 M Solar Tracking System Back Tracking Axis Solar Tracker With Worm Gear
