Ground Photovoltaic Solar Mounting System Single Column Support Bracket Tracking System
Working principle:
Ground mounting single axis solar tracking system components slew drive solar panel mounting brackets is controlled by the tracking controller, with simple structure, easy installation, flexible response, good reliability and strong fault identification ability. Compared with traditional fixed inclination installation, the generating capacity can be increased by 15%-20% (depending on local conditions).
Functions:
1) Power generation efficiency increased by 35%~40%.
2) Simple structure ,easy in installation and debugger application.
3) Adopting advanced good quality components in inclination,electric parts and actuator parts.
4) The tracker could adjusts solar panels into horizontal when meeting strong wind.
5) Adapt to outdoor environment,working temperature -40~80C°.
6) Running in a high automation and intelligence,no pollution.
7) Hot-dipped zinc galvanization will extend the work life of the brackets
Technical Parameters of single axis solar tracking system
| Ground Photovoltaic Solar Mounting System Single Column Support Bracket Tracking System |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Ground Coverage Ratio | ≥ 25% |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - 70℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Tracking Accuracy | ≤ 1° |
| String-Powered | Yes |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
Welcome to Join Good Future Solar
It doesn't matter if you're a solar supplier, distributor or constructor
No matter where you are in the world. Solar pv ground mounting system excellent quality hot sale sun tracking solar panel mount
Any area you need Good Future Solar, feel free to contact us!
Company contact info:
E-mail: info@hwlsolar.com
Web: www.hwlsolar.com
Tel: +86-371-63966669
Product Tags:
|
|

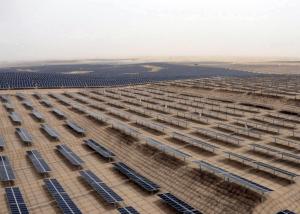

Ground Photovoltaic Solar Mounting System Single Column Tracking System Images
|
